GTC 400 C PROFESSIONAL: FURTHER INFORMATION

Product Highlights



The thermal camera GTC 400 C Professional measures and visualizes temperature differences in seconds and easily records the results. The Bosch Thermal App documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localization of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.



The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.



Equipment & Application

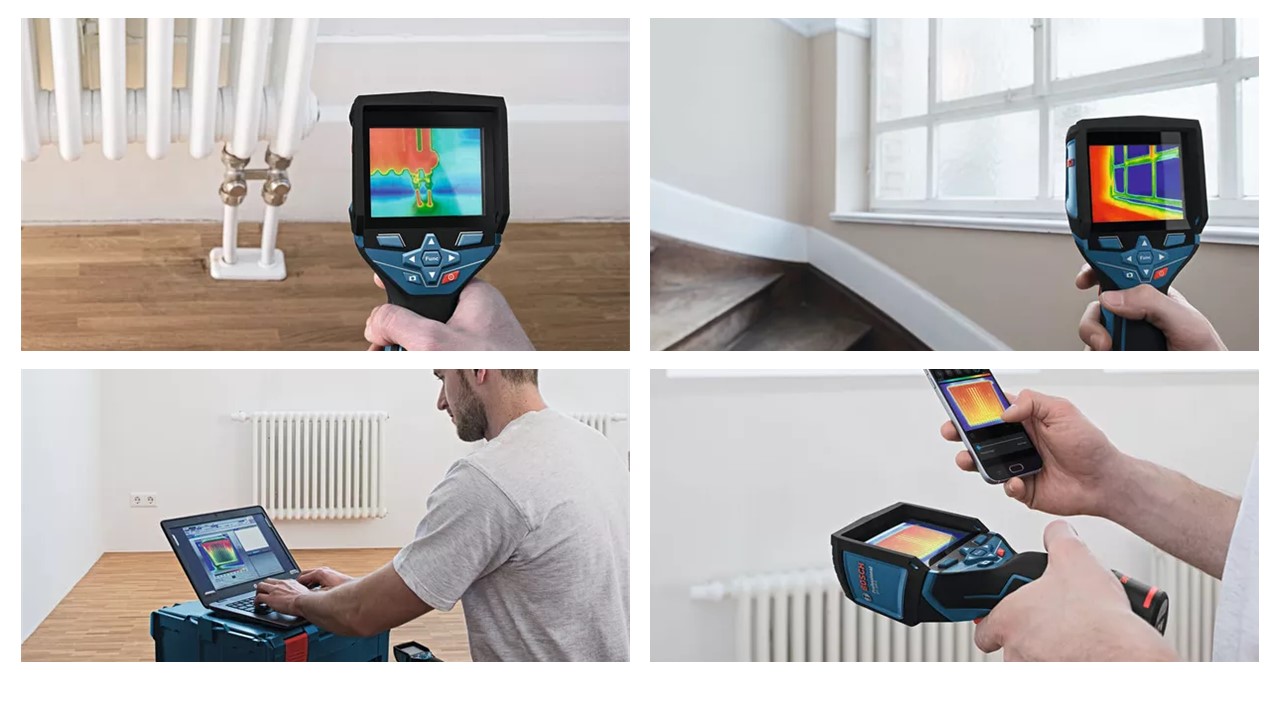

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.



Specifications

Technical Data

Measuring application Thermal image

Battery voltage 12 V

Measurement range -10 °C to +400 °C

Measuring accuracy of IR ± 3.0 °C* (*plus use-dependent deviation)

Data transfer MicroUSB, Wi-Fi

Thermal sensitivity (NETD) <50 mK

Resolution 0.1 °C

Size of IR sensor 160x120 px

Number of measuring points 19,200

Field of view (FOV) 53x43 °

Power supply and runtime 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V

Frame buffer (number of images) 500

Memory type Internal memory

File format of image .jpg

Dust and splash protection IP 53

Weight 0.54 kg

Supported Android devices Smartphone with Android 6.0 or higher

Supported iOS devices iPhone with iOS 11 or higher

Size of display 3,5"

Operating temperature -10 – 45 °C

Storage temperature -20 – 70 °C

Focus distance, minimum 0.3 m



Item in the box

1 unit x GTC 400 C PROFESSIONAL Bosch Thermal Camera

1 pcs x AA1 alkaline battery adapter 1 608 M00 C1B

4 pcs x 1.5 V LR6 battery (AA)

1 pcs x Protective Bag

1 pcs x Hand strap

1 pcs x Micro USB cable 2 609 120 670
