Details

---

Features



Excellent tool balance for easy handling and control

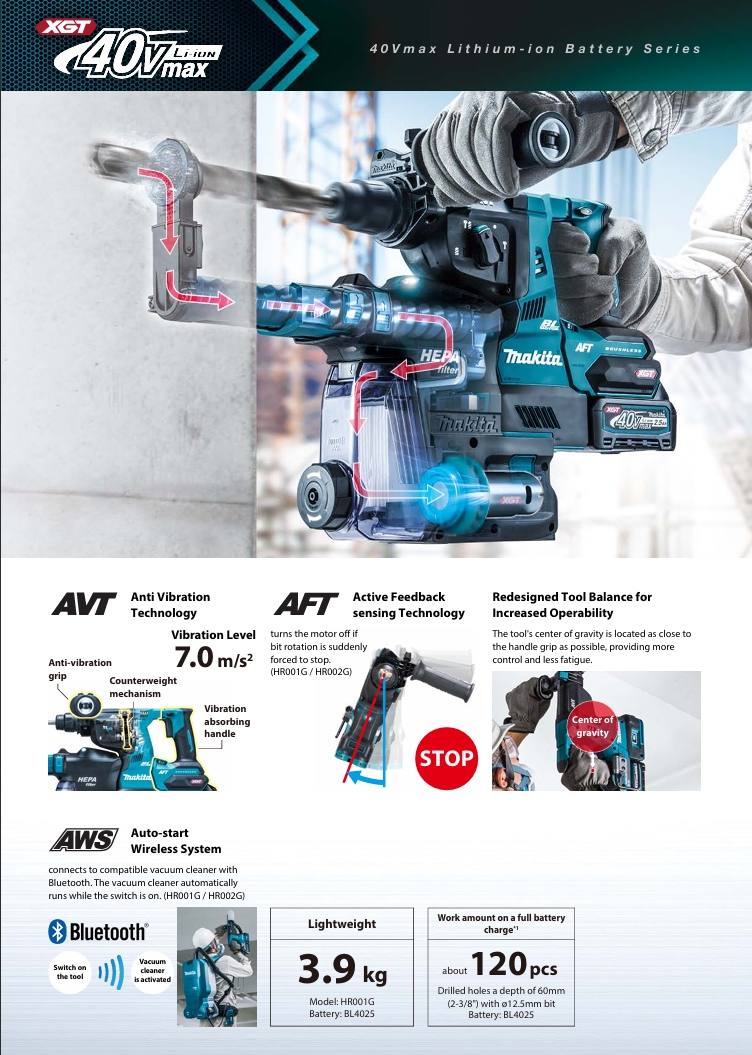

Anti-Vibration Technology (AVT) for extremely low vibration

High power similar to DHR282 series

3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only"

One touch sliding chuck enables quick and easy bit changes

Variable speed trigger allows operator to adjust speed based on materials or application

Constant speed control automatically applies additional power to the motor to maintain speed under load



Specification

Impact Energy

EPTA-Procedure 05/2009: 2.8 J

Our Experimental Conditions: 3.2 J

CapacityConcrete: 28 mm (1-1/8")

Steel: 13 mm (1/2")

Wood: 32 mm (1-1/4")

Core Bit: 54 mm (2-1/8")

Diamond Core Bit (Dry Type): 65 mm (2-9/16")

Impacts Per Minute (IPM)0 - 5,000

No Load Speed (RPM)0 - 980

Dimensions (L x W x H)358 x 121 x 232 mm (14-1/8 x 4-3/4 x 9-1/8")

Net Weight3.9 - 4.6 kg (8.6 - 10.1 lbs)

Work Amount (approx.)138 holes with BL4040

Concrete Grade 40 N/mm²

Ø 10.5 mm x 60 mm depth

* Recommended batteries 2.0 Ah, 2.5 Ah, 4.0 Ah, 4.0 Ah (F)



Standard Equipment

Side Grip, Depth Gauge



Available Options

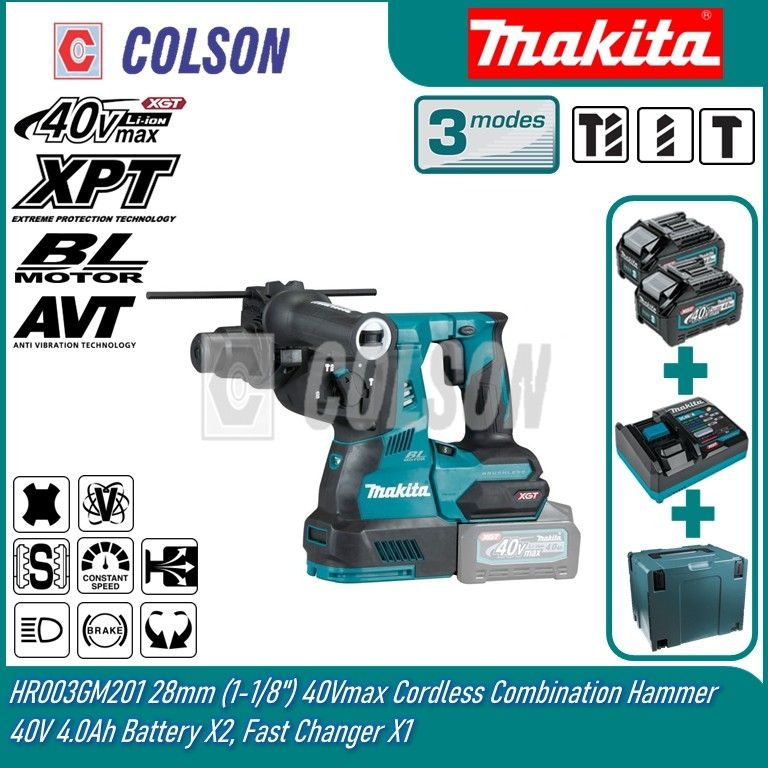

GM201: 1x Fast Charger, 2x 4.0Ah Battery, 1x Makpac Connector Box Type 4

GZ: Without Battery, Charger & Carrying Case
