Details

---

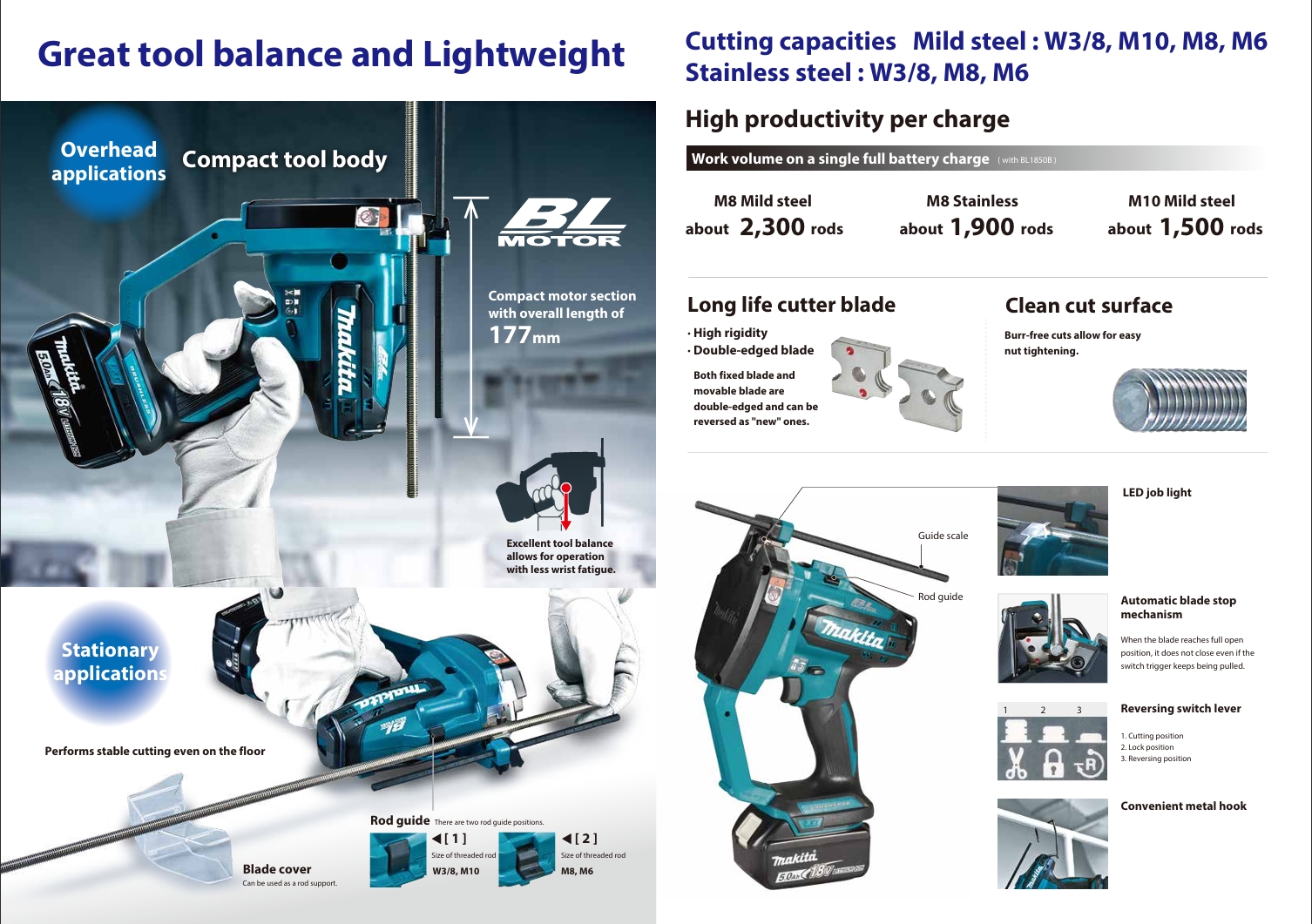

More Compact & High Productivity

Cuts up to M10

Compact motor section with overall length of 177 mm

Excellent tool balance allows for operation with less wrist fatigue

Compatible with both 18V and 14.4V LXT Li-Ion batteries

BL motor with high power to weight and size ratio

BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life

Superior handling in overhead applications

Performs stable cutting even on the floor

Both fixed blade and movable blade are double-edged and can be reversed as “new” ones for longer blade life

Burr-free cuts allow for easy nut tightening

Automatic blade stop mechanism allows operator to quickly resume operation by letting the movable blades stop at its full open position

Rod guide adjustable for precise cutting

LED job light for increased visibility

Reversing switch for easy blade release from a rod

Hook is convenient for hanging the tool temporarily

Electric brake for maximum productivity and increased operator safety

Battery protection circuit protects against overloading, over-discharging and over-heating



Capacity :

Mild Steel: W3/8, M10, M8, M6

Stainless Steel: W3/8, M8, M6

Min. Cutting Length :

20 mm (13/16″)

Max Output :

280 W

Work Amount (pcs) :

W3/8 (Mild Steel) w/ BL1860B: 1,600

W3/8 (Stainless) w/BL1860B: 1,500

M10 (Mild Steel) w/BL1860B: 1,600

M8 (Mild Steel) w/BL1860B: 2,300

Vibration Level :

Cutting Threaded Stainless Steel Rod (Rod Size W3/8): 2.5 m/s² or less

Vibration K Factor :

Cutting Threaded Stainless Steel Rod (Rod Size W3/8): 1.5 m/s²

Sound Pressure Level :

71 dB(A)

Noise K Factor :

3 dB(A)

Dimensions (L x W x H) :

w/ BL1830B / BL1840B / BL1850B / BL1860B: 199x103x308 mm (7-7/8″x4-1/16″x12-1/8″)

Net weight :

2.8 – 3.2 kg (6.2 – 7.0 lbs.)
